Season affects fire behavior in annually burned humid savanna of West Africa

Study site

The study site was the Lamto Reserve (central Ivory Coast, extending from 6°9' N to 6°13' N, and from −5°15' W to −4°57' W), a 2500 ha area of typical Guinean forest−savanna mosaic devoted to scientific research since 1962 (Abbadie et al. 2006). The average annual rainfall is about 1200 mm (Pagney 1988). The climate is sub-equatorial with four seasons based on monthly rain: a long rainy season from mid March to July, a short dry season in August, a short rainy season from September to mid November, and a long dry season from mid November to mid March. The shorter dry season has significant interannual variations in the date (August, September, or October) and duration (0 to 2 months). Fires in the Lamto Reserve are set by managers in the middle of the long dry season (mid-season fire), following practices of local populations.

The main savanna type is a shrubby savanna with tree cover between 7% and 62% (Gautier 1990). The savanna is dominated by three species of Andropogoneae grasses: Andropogon ascinodis C. B. Cl., Andropogon canaliculatus (Schumach.), and Andropogon schirensis (Hochst. ex A. Rich). Annual aboveground grass net primary production can be as high as 20 t ha⁻¹ yr⁻¹ (dry mass; Gignoux et al. 2006).

Experimental set-up and fire treatments

This study was conducted on three 230 m × 120 m blocks of shrubby savanna, each separated from the surrounding similar savanna by a 10 m wide firebreak, and distant from each other by a few kilometers (Fig. 1). Each block was divided into three 100 m × 50 m plots separated from each other by 30 m wide firebreaks. Each plot in a block received one of three fire treatments in a full factorial design: (1) early-season fire at the start of the long dry season (~18 November); (2) mid-season fire at the middle of the long dry season (~18 January); and (3) late-season fire at the very end of the long dry season (~15 March) (Fig. 2). On each plot, the designated fire treatment was applied four times from 2013 to 2017. All blocks were located on flat ground to eliminate the influence of slope. All plots had experienced annual mid-season fire for at least 50 years before the experiment.

Fuel characteristics

Fuel consisted primarily of grass and tree leaf litter. Fuel characteristics were described by the following variables before fires were applied: fuel load (kg m⁻²), moisture content (%), and grass height (cm). Fuel was collected on ten 1 m² quadrats per plot shortly (minutes) before burning. Fuel was separated into litter (fallen dead grass and tree leaves) and standing fuel (standing grass and stems), and immediately weighed for fresh mass. Samples were oven-dried at 80 °C to constant weight and weighed for dry mass. Moisture content was then calculated. Grass cover height (cm) was determined as the average vertical distance from the ground to the tip of the shoot of 50 randomly selected points.

Fire behavior

Fire was ignited with a dry palm leaf along the shorter side of each plot in the direction of the wind to rapidly establish a fire-line and ensure linear ignition. All burns were conducted in the morning (1000 to 1100 hours) on the same day, in order to ensure similarity of fuel moisture levels and weather conditions (e.g, wind, air humidity, and temperature). We characterized fire behavior using six variables: rate of spread (m s⁻¹), fire intensity (kW m⁻¹), fire maximal temperature (°C), residence time above 60 °C (s), flame height (m), and combustion efficiency (%).

The rate of spread was determined by using stop watches to record the time it took for a flame line to reach poles positioned every 10 m on both sides of each plot.

Fire intensity (I) was estimated using Byram’s (1959) equation:

where W (kg m⁻²) is the mass of fresh fuel consumed; H is the heat yield of the fuel, which, for grass fuel, 16 890 kJ kg⁻¹ is the recommended value (Trollope 1983); and R (m s⁻¹) is the rate of spread.

The fire residence time was defined as the time during which air temperature at ground level, measured with a thermocouple, was above 60 °C—the commonly accepted lethal temperature for most plant cells (Daniell et al. 1969). We used self-built synchronized fire temperature recorders (SFTRs) to measure this time. Each SFTR was composed of a thermocouple (type K 250 mm steel probe, 0 to 1100 °C range) connected to a Raspberry Pi nano-computer (https://www.raspberrypi.org/), plus batteries. Prior to setting fires, the SFTRs were synchronized by sending a “start” signal prior to burying them in the plots, with only the top 10 cm of the thermocouple probe protruding from the ground. They were placed at the ends of equilateral triangles that had sides 20 m in length. After the fires, the time series of temperatures were downloaded from the STFRs and residence times were computed from those data.

Flame height (m) and fuel consumption (%) were measured as post-fire indices of fire intensity and fire severity, respectively. Intensity is a function of the energy released by a fire front, while severity refers to the impact of fire on vegetation.

Flame height was measured on each plot after each fire using 10 iron poles, each of 4 m height, on which 5 cm long pieces of paper tape had been placed every 20 cm. The flame height was equal to the maximum height where the paper was burned. The 10 poles on each plot were distributed randomly; heights were averaged over the ten poles for each plot for further analysis.

Immediately after each experimental fire, the residual unburned fuel in each plot from 10 random quadrats of 1 m² was sampled, dried, and weighed, using techniques that were similar to those for the pre-fire samples. For each plot and fire, we used the average values of post-fire mass and pre-fire mass to estimate combustion efficiency (%).

Weather

During each fire, wind speed (m s⁻¹), air temperature (°C), and relative humidity (%) were recorded every five minutes, similar to methods of Kidnie and Wotton (2015), using an in situ automatic weather station (reference number SM55PRO; Inovalley, Pontoise, France) placed at 2 m aboveground, in the fire break between two adjacent plots. The recorded values were averaged over the period of fire propagation for each plot.

Statistical analyses

We analyzed data using R software (R Development Core Team 2014). Mixed-effect models (lmer R function) were developed to analyze the responses of fire behavior parameters (rate of spread, fire-line intensity, maximum temperature, residence time above lethal temperature, flame height, and combustion efficiency), as well as the relative importance of pre-burn fuel characteristics (grass height, fuel loads, and fuel moisture contents), and weather parameters during fires (air humidity, air temperature, and wind speed) relative to three explanatory variables: season (3 seasons), year (4 years) and plot (9 plots). Season was the fixed effect, while year and plot were treated as crossed random effect. We simplified the models by eliminating non-significant random effects, based on F-tests (they were exact tests because the experimental design was balanced). A Tukey multiple comparison test (HSD) was used to compare the different modalities of significant fixed effects.

For the effect of fuel and weather variables on fire behavior, we used mixed-effect multiple regression models (averages of fuels and weather parameters for each site and fire had been used to describe the sites and weather; these parameters did not vary at the individual plot level). Final models were selected using a stepwise procedure based on minimum Akaike Information Criterion estimation. Year and plot were again treated as crossed random effects.

Fuel characteristics, weather conditions, and fire behavior across the seasons

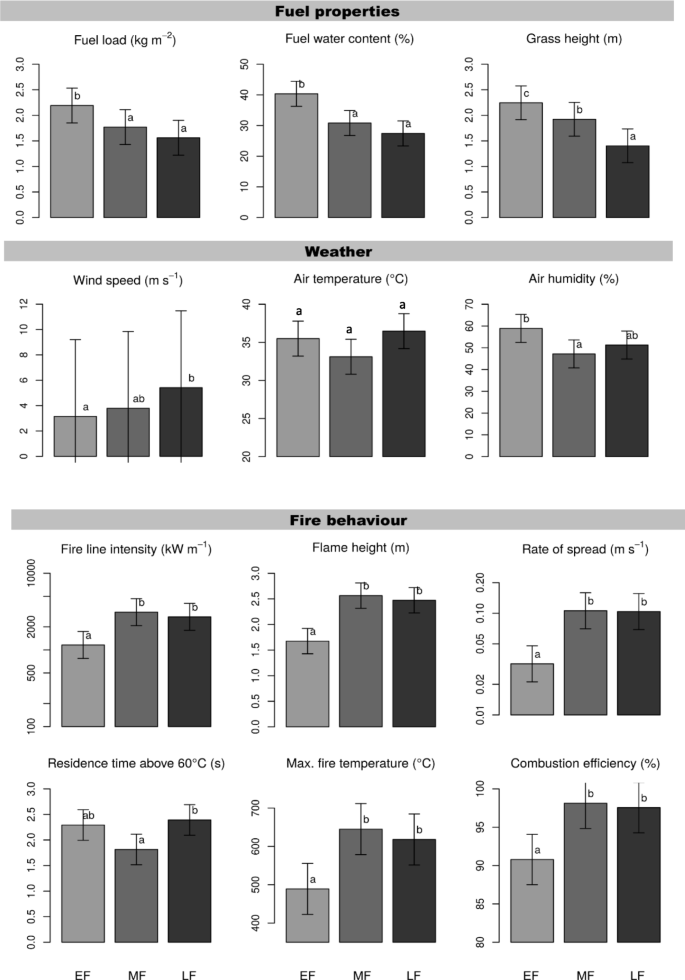

Total fresh fuel load (kg m^-2) and its moisture content were significantly greater in the early dry season than in the mid and late dry seasons. There was no significant difference in fuel loads between mid and late dry seasons. The height of the grassy understory decreased significantly from early to late dry season (Fig. 3, Table 1). Significant year random effects occurred for both total fuel load and grass height (Table 1).

Variables	Fixed effects				Random effects
	Fire season (n = 3)				Plot (n = 9)		Year (n = 4)
	F	df	P value	R2	χ2 (1 df)	P value	χ2 (1 df)	P value
Fire intensitya	7.17	2.33	0.003	0.30	0.00	1.000	2.27	0.132
Flame height	16.17	2.33	< 0.001	0.49	0.01	0.925	1.83	0.176
Rate of fire spreada	11.78	2.33	< 0.001	0.42	0.01	0.912	1.57	0.210
Residence time > 60 °C	4.53	2. 24	0.021	0.27	0.00	1.000	1.34	0.247
Maximum temperature	6.67	2.24	0.005	0.36	0.00	1.000	0.58	0.447
Combustion efficiency	9.24	2.6	0.015		4.49	0.034	0.00	1.000
Wind speed	3.97	2.6	0.029		0.00	1.000	35.59	< 0.001
Air temperature	2.35	2.33	0.112	0.12	0.01	0.921	0.14	0.706
Air humidity	3.55	2.33	0.040	0.18	0.00	1.000	2.83	0.093
Fuel load (fresh)	23.14	2.30	< 0.001		0.00	1.000	10.95	< 0.001
Fuel moisture content	11.16	2.33	< 0.001	0.40	0.00	1.000	0.11	0.738
Grass height	58.41	2.30	< 0.001		0.00	1.000	15.01	< 0.001

Mixed models analyses were performed with the R lmer function. R² values provided for fixed-effects models when random effects were not significant. Boldface data indicates effects significant at the 0.05 level. F = F value; df = degrees of freedom; χ² = chi-squared statistic

^alog-transformed prior to analysis based on the distribution of residuals.

Wind speed varied with year (78% of variance explained by the random effect in the complete model; Table 1) and increased from early-season fire to late-season fire. Air temperature did not vary with fire season. Relative air humidity also varied with fire season, with a higher value in early-season fire (Fig. 3, Table 1).

All fire behavior variables except residence time above 60 °C showed the same pattern of response to fire season: their values were lower during the early-season fire than during mid-season and late season fires. There were no differences in the variables between mid-season fire and late-season fire. The fire residence time was highest in late-season fire and lowest in mid-season fire. Early-season fire presented the middle value. The only significant random effect (plot) was for combustion efficiency (Fig. 3; Table 1).

Fire behavior: explanatory models

As for explanatory variables, fuel moisture content was a very important (P < 0.001) for three of the six variables that describe fire behavior, and somewhat important (P < 0.10) in a fourth (Table 2). Air humidity was an important explanatory variable (P < 0.01 and P < 0.05) for four of the six variables describing fire behavior, and somewhat important (P < 0.10) in a fifth. These two explanatory variables were the sole significant predictors for fire intensity, rate of fire spread, and flame height. They also appeared in models for fire maximum temperature (plus grass height) and for fire residence time > 60 °C (plus fuel load and air temperature; Table 2).

Grass height was a significant predictor (P < 0.05) of only one response variable (combustion efficiency), but also a weak inclusion in the model for fire maximum temperature. Fuel load was a significant predictor (P < 0.01) only in the model for fire residence time > 60 °C (Table 2).

Seasonal changes in fuel and fire characteristics

There are few studies of the impact of season on fuel and fire characteristics in humid savannas anywhere in the world; comparisons can yield important insights for savanna ecosystem management. The results of our study are consistent with findings of Williams et al. (1998) in Northern Australia, and of Higgins et al. (2000) and van Wilgen et al. (2003) in South Africa that showed a decrease in moisture content as the dry season progresses. We also confirmed results from Rissi et al. (2017) in Brazil that showed that the dry fuel load does not change during the dry season.

Fuel loads in the present study at Lamto Reserve are higher than those previously reported for other African savannas—about five times greater than those of a Sudanian savanna of Burkina Faso (Savadogo et al. 2007), and about ten times greater than in Chad (Guiguindibaye et al. 2013). These high fuel loads most likely explain the higher fire intensity we recorded, compared to these savannas (Savadogo et al. 2007; Guiguindibaye et al. 2013). Frost et al. (1986) concluded that fire is more intense in humid savannas than in dry savannas due to differences in water availability that lead to differences in grass biomass (i.e., fuel loads).

Based on fire intensity classes defined by Morrison (2002), in Lamto Reserve, early-season fire can be considered low-intensity fire, and mid-season and late-season fires as high-intensity fires. In our study, both the rate of spread and intensity of fires increased as the dry season progressed. Flame height followed the same trend, and can be considered a good indicator of fire intensity, as was suggested by Burrows (1995), Williams et al. (1998), and Morrison (2002).

The fact that fire maximum temperature was lower during the early-fire season than during the mid- and late-season fires of our study is consistent with the results for different seasons reported by Sidzabda et al. (2010) for the same three fire seasons in a Sudanian savanna of Burkina Faso. The maximum fire temperature recorded in Lamto Reserve, however, is three times higher than that observed in both Laba State (Sidzabda et al. 2010) and Tiogo (Savadogo et al. 2007) in Burkina Faso. These differences in the maximum fire temperature is certainly due to the highest fire intensity in Lamto Reserve.

Prediction of fire characteristics with fuel and weather characteristics

Fuel characteristics and fire behavior of our study were comparable to those reported by Afelu and Kokou (2015) in the transition zone between the Guineo-Congolese and the Sudanian zones of Togo. The fuel loads in our humid savanna of Lamto Reserve were higher than those measured in the humid savannas of Northern Australia (Williams et al., 1998) and in somewhat drier savannas of South Africa (van Wilgen et al., 1985), yet in Lamto Reserve, the rate of fire spread was slower and the intensity of fire was lower than those reported for early-season and late-season fires in those savannas. The difference in fire behavior could be due to the lower fuel moisture in Northern Australia and South Africa due to the single, much longer dry season. In Northern Australia, the very low moisture content of the fuel and the very dry air create favorable conditions for very rapid fire spread and higher fire intensity (Anderson and Anderson 2010, Fontaine et al. 2012). The comparison suggests that fuel moisture content is one of the main factors influencing fire behavior, as indicated by the fact that fuel moisture is the most common and significant explanatory variable predicting various descriptors of fire behavior in our study. Our results are also consistent with those of Govender et al. (2006), who observed a doubling of fire intensity when fuel moisture decreased three-fold. In our study, we observed the doubling of fire intensity when fuel moisture decreased by 12% (for 10% of fuel humidity, fire intensity was 8800 kW m⁻¹; for 22% fuel humidity, 4430 kW m⁻¹; and for 50%, 540 kW m⁻¹).

Our results are also consistent with the conclusion of Govender et al. (2006), that the effects of seasonal moisture override that of fuel load. During the early dry season of our study, there were large quantities of live perennial fuel with high moisture content, but the fires had the lowest rate of spread, intensity, and flame height (Fig. 2).

According to Hoffmann et al. (2012), the microclimate during fire determines flammability because of its effect on fuel moisture. In our study, air humidity was the only weather parameter that varied between seasons (with a higher average value during the early fire; i.e, this variable did impact fire behavior). In dry conditions, fires were faster and more intense, flames were higher, but the maximum residence time was shorter.

Contrary to the reports from studies in other savannas that wind speed (Savadogo et al. 2007, Vega et al. 2012) and air temperature (Platt et al. 2015) strongly affect fire behavior, this was not the case in our study in the Guinean savanna of Lamto Reserve. These two parameters did not change over the seasons in our study, although fire behavior certainly did. A lack of effect of wind speed may be due to generally low wind speed in Lamto Reserve (Le Roux 1995), as was also reported in the Brazilian Cerrado (Rissi et al. 2017); further, there are only minor variations of air temperature throughout the year (Forge 1982).

Our analyses indicating that seasonal fuel characteristics and weather conditions jointly contribute to determine fire behavior in these West African humid savannas is consistent with studies of Higgins et al. (2000) in southern African savannas, and Platt et al. (2015) in humid savannas of southeastern North America. In particular, in Lamto Reserve, fuel moisture and air humidity are highly predictive of fire behavior; these variables are relatively easily measured in the field. The models presented in this study are novel and could be useful tools for assessing and monitoring various fire regimes in the humid savannas of West Africa. To date, no other work is available that can be used to predict fire behavior in this region.

Potential severity of fire

In our study, although there was no difference in fire behavior between mid dry season and late dry season fires, there were differences in fire severity (e.g., the effect on trees) across seasons. Indeed, late-season fires are known to negatively impact trees in Lamto Reserve (Gignoux et al. 2006). Similarly, the high impact of late-season fires on trees is common in other savannas; most studies attribute this phenomenon to higher fire intensity (Williams et al., 1998, Savadogo et al. 2007).

We suggest that the differences in fire severity (impact on trees) between mid-season and late-season fires (despite similar fire behavior) is most likely explained by the phenological state of trees, as suggested for humid savannas in Australia (Werner and Prior 2013) and southeastern North America (Robertson and Hmielowski 2014). In Lamto Reserve savanna, all trees are leafless during the dry season so that mid-season fire cannot cause significant damage to living tree tissues (i.e., trunks and main branches are fire resistant (Gignoux et al. 1997, N’Dri et al. 2014). However, at the end of the dry season or beginning of the rainy season, trees begin to set new leaves, so that fire at this period could be very detrimental (Gignoux et al. 2009). In addition, the longer lethal temperature residence time during late-season fires compared to mid-season fires could further explain the high impact of late-seaon fire on trees.

Our results support the hypothesis that the generally observed high severity of late-season fires for savanna trees is not due to a higher fire intensity: we found no significant increase in fire intensity in late-season fires compared to mid-season fires. However, to assess this point further, studies are needed relating fire intensity to measures of tree growth and survival under different fire regimes.
