Burning structures and wildland fuels both influence home survival
Our analysis of post-fire outcomes in the town of Paradise suggested that both the proximity to other burning structures and nearby wildland fuels factored in the probability of home survival, with several measures of distance and density of destroyed structures and nearby pre-fire overstory canopy cover emerging as significant explanatory variables. The relative importance of nearby burning home variables versus surrounding vegetation in explaining outcomes has varied among studies, with Gibbons et al. (2012) reporting canopy cover within 40m of the home to be the strongest predictor. Number of buildings within 40m was also a significant variable in their analysis. Even though nearby burning structure and vegetation variables were both included in the models in our study, interpretations about relative strength of these two sets of factors are tempered by limitations of the vegetation data, with overstory canopy cover an imperfect measure of wildland fuel hazard.
One possible clue to the relative importance of adjacent structures burning comes from the different outcomes for wildland urban intermix and interface homes. Houses built amongst wildland vegetation (intermix) survived at a higher rate (29%) than houses built in more of a subdivision arrangement with wildland fuels nearby (interface) (16%). Average pre-fire overstory canopy cover within 0–30 m was similar for intermix and interface homes (42% and 43%, respectively), but pre-fire overstory canopy cover within 30–100 m was higher for intermix than interface homes (49% vs. 42%, respectively). If proximity to wildland fuels had been the dominant driver, greater percentage losses in the wildland urban intermix would have been expected. The higher survival of intermix homes may therefore have been more a function of greater average distance to the nearest destroyed structure (24 m vs. 11 m in the intermix and interface, respectively) and lower average density (7.7 vs. 11.1 structures within 100 m in the intermix and interface, respectively). (Kramer et al. 2019) in an analysis of three-decade’s worth of wildfires in California, also reported higher survival of homes in the wildland-urban intermix compared to the wildland-urban interface, and together with our results provide some additional evidence of the importance of nearby burning structures to home loss, relative to variables associated with wildland fuels. However, in our study, other factors were likely in play as well, with intermix homes being somewhat newer. In Paradise, an increasing percentage of homes were located in the intermix vs. the interface over time: 66% in time period 1, 80% in time period 2, and 88% in time period 3.
Homes as fuel
Distance to nearest destroyed structure and the total number of destroyed structures within 100 m were consistently the strongest predictors in our analyses. This makes intuitive sense because burning structures produce a substantial amount of radiant heat, which can ignite adjacent homes or break glass in windows, allowing embers to enter the home. Nearby burning structures are also a source of embers, which can result in direct or indirect ember ignitions of nearby structures. Our visual analysis of 310 damaged homes corroborated the results of the statistical analyses, with more homes showing evidence of damage from radiant heat exposure (often from adjacent structures burning) than from flame impingement. Our findings are consistent with other analyses of destructive wildfires showing housing density to be strongly associated with home loss (Price and Bradstock 2013; Penman et al. 2019), but in contrast to Syphard et al. (2012, 2014, 2017) and Syphard and Keeley (2020), who have reported reduced probability of home loss at higher housing densities. The difference between studies likely has to do with variation in density ranges evaluated, as well as variation in vegetation type and housing arrangement. Syphard et al. (2012) sampled large fire-prone regions with shrub-dominated vegetation in southern California, ranging from outlying WUI areas to denser cities that did not burn to answer the question of housing arrangements most prone to loss in a wildfire. Since the entire scope of our analysis was within the Camp Fire perimeter, our research question differs: when burned, what factors influenced survival? In any case, the interpretation of Syphard et al. (2012, 2014, 2017) of lower loss probability with higher density development may not apply to different development patterns, including those present in Paradise. Such intermediate to low density wildland urban intermix and interface development interspersed with native (and non-native) vegetation is prevalent in foothills and lower mountainous regions of central and northern California (Hammer et al. 2007). In chaparral dominated ecosystems of southern California, high-density housing might result in more of the proximate shrub vegetation being removed, but in Paradise, overstory canopy cover within 0–30 m of the home was actually positively correlated with housing density.
At what distance an adjacent burning structure presents a vulnerability is not well studied. Our analyses identified a threshold of 18 m from the nearest destroyed structure that best differentiated surviving and destroyed homes (Fig. 5a). Price and Bradstock (2013) found the presence of houses within 50 m to be predictive of loss. Radiant heat flux, which is inversely related to distance from the flaming source, can be a factor up to 40 m from a burning structure (Cohen 2000). Cohen (2004) reported that models predicted ignition of wood walls when less than 28 m from a crown fire in forested vegetation, with actual experimental crown fires finding ignition at a 10-m distance, but not 20 m or 30 m. The radiant heat flux adjacent to burning structures is different and likely more sustained than a similar heat flux adjacent to crowning wildland vegetation.
Between home spacing has been evaluated in post-fire assessments conducted after the Witch Fire in San Diego County, California (Insurance Institute for Business and Home Safety 2008), the Waldo Canyon Fire in Colorado Springs, Colorado (Quarles et al. 2013), and the Black Bear Cub Fire in Sevier County, Tennessee (Quarles and Konz 2016). During each of these fires, home-to-home spread was observed with spacing less than 10 m. The IBHS Witch Fire report (Insurance Institute for Business and Home Safety 2008) referred to home-to-home spread as “cluster burning,” which was not observed when homes were located more than 14 m apart. Our finding of an 18-m threshold is similar to the IBHS Witch Fire results. Regardless of the actual ideal home separation level, many homes in fire-prone areas of the western USA are on lot sizes that do not permit more than 18 m of separation between buildings.
Wildland fuels and defensible space actions
Pre-fire overstory canopy cover was a significant predictor of home survival in the statistical models, with the canopy cover 30–100 m away having a larger effect size than canopy cover in the immediate vicinity of the home (0–30 m) (Fig. 4a, b). This result (and other evidence, below) suggests that overstory canopy cover may only be correlated to factors that contributed to fire spread and increased the threat to homes, rather than a direct contributor. The often indirect influence of tree canopies on home survival, mediated by the litter fuels produced rather than canopy combustion, has been noted by others (Keeley et al. 2013). Wildland fire spread is dependent on surface fuels—litter, duff, and dead and down woody material, which would be expected to be most abundant and continuous under or adjacent to overstory tree canopy. The link between overstory canopy cover and surface fuel abundance may have been weaker from 0 to 30 m than distances farther removed from the home because of the greater likelihood that such surface fuels were better managed near homes, perhaps as a result of defensible space activities. In addition, the continuity of vegetative fuels is more likely to be broken up by lawns, driveways, or irrigated landscaping near the home. While vegetation abundance within 30 m has been reported to be associated home loss in southern California fires burning in shrubland vegetation types (Syphard et al. 2014, 2017), Alexandre et al. (2016) found vegetation near a building not to be a strong factor in models of loss for fires in southern California and Colorado. They theorized that the connectivity of vegetation to the home was more critical than vegetative cover.
While burning trees and associated vegetation may generate substantial flame lengths and embers which can then threaten homes, the overstory tree canopies themselves did not appear to drive fire intensity in most cases. With the Camp Fire, many overstory trees located away from burning homes survived (Keeley and Syphard 2019; Cohen and Strohmaier 2020) (Fig. 7). Rather than tree torching directly impacting nearby structures, the torching of trees and other vegetation appeared from photographs and personal observation to frequently be caused by heat from nearby burning structures. Additionally, a substantial proportion of the canopy of native tree vegetation in Paradise at the time of the fire was comprised of California black oak (Quercus kelloggii Newb.), a native deciduous species that would have shed at least a portion of its leaves by the time of year when the Camp Fire burned through Paradise. Even when fully leafed out, the crowns of black oak trees are relatively open with low canopy bulk density. Deciduous oak litter breaks down faster than conifer litter, and the light fuel loads in pure black oak stands tend to promote low-intensity surface fire rather than crown fire (Skinner et al. 2006). Ponderosa pine (Pinus ponderosa Lawson & C. Lawson) was the other major native tree species. Leaf and needle litter can carry flames to the home or provide receptive fuels for ember ignitions and would likely have been positively correlated to pre-fire overstory tree canopy cover, especially in the fall. Embers can also ignite litter that has accumulated in gutters and roofs. High pre-fire overstory canopy cover may also indicate areas where associated vegetation and surface fuels had developed to the greatest extent in the absence of fire and active management, especially at a distance from homes. With the lands in the Paradise area having no record of fire in modern recorded history (Maranghides et al. 2021), considerable vegetative ingrowth and accumulation of dead and down surface fuels was likely, especially relative to historical amounts. Ingrowth could have included brush and smaller conifers that acted as ladder fuels, leading to torching and ember generation.
Even though our data showed a stronger association between pre-fire overstory tree cover and home survival for distances beyond which defensible space is typically mandated (100 ft or 30 m), this does not mean that vegetation modification within 30 m is any less important. For reasons described earlier, the fuel hazards contributing to outcome were likely not well captured by the overstory canopy cover variable, especially in this near-home zone. In addition, once structures become involved, defensible space vegetation modification to 30 m (100 ft) may be insufficient to mitigate ember and radiant heat exposures contributing to home loss. In an analysis of CAL FIRE DINS data over multiple fires, including the Camp Fire, Syphard and Keeley (2019) reported that defensible space was a poor predictor of outcome, with structural variables (e.g., eave construction details, numbers of windowpanes (double vs. single), vent screen size) more highly correlated with home survival. The low predictive power of defensible space may be partially due to the coarseness with which defensible space is classified in the DINS data, with broad distance categories not fully capturing spacing, composition, or flammability of the vegetation. In addition, in many destructive wildfires, a large portion of homes are lost through direct or indirect ember ignition and not flame impingement associated with the continuity with wildland fuels (Murphy et al. 2007; Cohen and Stratton 2008). With embers capable of igniting fuels over 1–2 km away, the protective effect of vegetation modification within 30 m of the house does not guarantee survival when fire-fighting resources are not present. Vegetation modifications in this zone, however, do provide access and a safer means of protecting a home when firefighting resources are available.
Our analysis relied upon aerial photo interpretation, and we could not assess surface fuels under dense tree canopies. As a result, and because of the likely indirect effect of leaf litter coming from the canopy, we caution against using cover percentages in the decision trees as forest thinning targets. Furthermore, surface and near-ground live fuels are considered the priority for altering fire behavior and influencing fire hazard (Agee and Skinner 2005). Higher canopy cover may be correlated to the rate of surface litter and woody fuel accumulation but does not necessarily directly translate to high fire hazard if these surface fuels are managed and maintained at low levels. In other words, higher overstory canopy cover can provide important amenities (e.g., shade, habitat—Gibbons et al. 2018) without undue fire hazard as long as the resulting litter and surface fuels are maintained and gutters are cleaned. Gibbons et al. 2018 also noted that patchiness and arrangement relative to prevailing winds can also reduce threat posed by near-home vegetation.
Did the adoption of Chapter 7A into the California Building Code influence survival?
While the survival rate for homes built in the 11 years after the adoption of Chapter 7A to the California Building Code in 2008 was numerically slightly higher than the survival rate of homes built in the 11 years immediately before, the difference was not statistically significant. It is possible that significance might have been found with a larger sample size, but even so, any influence of the building code update was likely overwhelmed by other factors. This was not a surprise because of the many interacting variables that affect building performance, in addition to building products rated to resist exterior fire exposures. The 2008 Chapter 7A building code update institutionalized several important and worthwhile changes to construction in high fire hazard zones, including the use of ember and flame-resistant vents. These changes may improve the probability of survival for some types of wildfire (e.g., vegetation and wind-driven fires); however, the changes were apparently not sufficient to fully protect buildings from radiant heat exposures from nearby burning structures. One of the primary mechanisms for radiant heat impact is the breaking of window glass, which can allow embers to enter the building (Penman et al. 2019). A common method for complying with Chapter 7A is through the use of tempered glass in one pane of a double-paned window. However, the magnitude of radiant heat exposure was likely still too much in many cases, or other vulnerabilities remained.
Variation in factors contributing to home loss across construction time periods

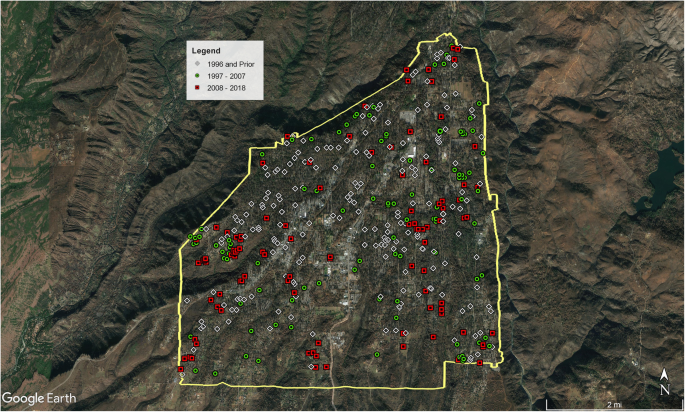

In models for predicting survival, the significant interaction of several of the potential explanatory variables with construction time period suggested that factors most strongly influencing home vulnerability differed for homes of different ages. Homes built in the most recent two 11-year periods (1997–2007 and 2008–2018) survived at a significantly higher rate than homes built prior to 1997. Factors potentially contributing to this increase include trends towards a longer average distance to the nearest structure and nearest destroyed structure, and a larger average lot size. Newer homes had lower pre-fire overstory canopy cover in the immediate vicinity (0–30m), whereas the older homes tended to be concentrated near the center of Paradise, where pre-fire overstory tree cover was higher. The two most recent construction time periods also saw changes in building construction including roofing materials having longer periods of robust performance (i.e., 30–50 years of service life), double-pane windows (as a result of changes to the energy code), and increased use of noncombustible fiber-cement siding. Many of these improvements, which potentially make newer homes less vulnerable to wildfire exposures, occurred well before the 2008 Chapter 7A update to the building code. Older homes may also have developed vulnerabilities resulting from overdue home maintenance. We speculate that with a higher proportion of newer homes surviving the ember onslaught, outcome then depended to a greater extent on degree of radiant heat exposure from nearby burned structures. This hypothesis is supported by the much stronger influence of distance to nearest burned structure and the number of structures burned within 100 m for newer (1997 and after) than older <1997) homes. A substantially lower proportion of older homes survived regardless of the distance to or density of nearby burned structures, suggesting other vulnerabilities (such as maintenance issues). Another factor that may have increased the survival probability of newer homes was simply less time for occupants to accumulate combustible items on their properties (e.g., sheds, stored objects, wood piles, play structures). The difference between distance to nearest home and distance to nearest structure was much greater for older than newer homes (data not shown), indicative of structures such as sheds, detached garages, or other outbuildings being added to properties over time. Our summary of damage location and cause for damaged homes as well as first-hand accounts (Maranghides et al. (2021); N. Wallingford, personal communication) indicated such non-vegetative items were frequently ignited by embers and the reason for a flame impingement exposure.
Difficulties in post-wildfire interpretation
A primary challenge in determining the potential causes for building survival after wildfire can be the variation in fire behavior experienced. The Camp Fire was no exception, with considerable observed differences in fire spread rates driven by ember-ignited spot fires, along with complex topography and local variation in wind speed (Maranghides et al. 2021). However, the Camp Fire burning through Paradise in 1 day may still have provided a more homogenous burn environment than present in many other post-fire evaluations of home survival, most of which combined data across multiple fires in different geographic locations and years (e.g., Syphard et al. 2012, 2017; Alexandre et al. 2016; Penman et al. 2019; Syphard and Keeley 2019)). Another factor that can often complicate interpretation is variation in the extent of firefighter intervention (McNamara et al. 2019). In the case of the Camp Fire, with the focus of first responders initially on evacuation, relatively few homes experienced defensive action by firefighters or civilians (according to the DINS assessment, defensive action was noted for only seven of the 400 randomly selected homes (1.7%), six of which survived). More broadly, while similar factors as those analyzed in this study may be pertinent in other wildfires, it is important to recognize that the variables identified here were specific to the housing, vegetation, and topographic conditions found in Paradise and may not apply elsewhere.
Determining pre-fire structural characteristics post-fire is difficult and availability of such data is generally limited (Syphard and Keeley 2019). Details about near-home vegetation, especially within the first 1.5 m of the structure, which has been shown to be an especially vulnerable location for ember ignition, were not available. We were also not able to quantify the presence and distance to small sheds and other storage structures, the age and condition of the roofing, or individual residents’ maintenance practices. The DINS data (e.g., extent of vegetation clearing for defensible space, siding type, type of window glass (single or multi-pane), deck construction, and presence of attached fencing) have value, but missing data and lack of information for structures not damaged or destroyed limit the utility for some analyses. We instead focused on variables that could be consistently evaluated on every home, such as pre-fire overstory canopy cover and distance to the nearest destroyed structure. Our vegetation variables were, however, coarse, and likely missed factors that contributed to home survival.
Lastly, for the damaged home cause and area of damage summary, it is important to acknowledge that the vulnerabilities may differ for damaged and destroyed homes. With evidence for what contributed to loss no longer available for destroyed homes, damaged homes provide a picture of the different vulnerabilities, but the relative contribution of factors involved may not be the same.
