Temporal patterns of active fire density and its relationship with a satellite fuel greenness index by vegetation type and region in Mexico during 2003–2014

Abstract

Background

Understanding the temporal patterns of fire occurrence and their relationships with fuel dryness is key to sound fire management, especially under increasing global warming. At present, no system for prediction of fire occurrence risk based on fuel dryness conditions is available in Mexico. As part of an ongoing national-scale project, we developed an operational fire risk mapping tool based on satellite and weather information.

Results

We demonstrated how differing monthly temporal trends in a fuel greenness index, dead ratio (DR), and fire density (FDI) can be clearly differentiated by vegetation type and region for the whole country, using MODIS satellite observations for the period 2003 to 2014. We tested linear and non-linear models, including temporal autocorrelation terms, for prediction of FDI from DR for a total of 28 combinations of vegetation types and regions. In addition, we developed seasonal autoregressive integrated moving average (ARIMA) models for forecasting DR values based on the last observed values. Most ARIMA models showed values of the adjusted coefficient of determination (R² adj) above 0.7 to 0.8, suggesting potential to forecast fuel dryness and fire occurrence risk conditions. The best fitted models explained more than 70% of the observed FDI variation in the relation between monthly DR and fire density.

Conclusion

These results suggest that there is potential for the DR index to be incorporated in future fire risk operational tools. However, some vegetation types and regions show lower correlations between DR and observed fire density, suggesting that other variables, such as distance and timing of agricultural burn, deserve attention in future studies.

Resumen

Antecedentes

Una adecuada planificación del manejo del fuego requiere de la comprensión de los patrones temporales de humedad del combustible y su influencia en el riesgo de incendio, particularmente bajo un escenario de calentamiento global. En la actualidad en México no existe ningún sistema operacional para la predicción del riesgo de incendio en base al grado de estrés hídrico de los combustibles. Un proyecto de investigación nacional actualmente en funcionamiento, tiene como objetivo el desarrollo de un sistema operacional de riesgo y peligro de incendio en base a información meteorológica y de satélite para México. Este estudio pertenece al citado proyecto

Resultados

Se observaron en el país distintas tendencias temporales en un índice de estrés hídrico de los combustibles basado en imágenes MODIS, el índice “dead ratio” (DR), y en las tendencias temporales de un ìndice de densidad de incendios (FDI), en distintos tipos de vegetación y regiones del país. Se evaluaron varios modelos lineales y potenciales, incluyendo términos para la consideración de la autocorrelación temporal, para la predicción de la densidad de incendios a partir del índice DR para un total de 28 tipos de vegetación y regiones. Se desarrollaron además modelos estacionales autoregresivos de media móvil (ARIMA en inglés) para el pronóstico del índice DR a partir de los últimos valores observados. La mayoría de los modelos ARIMA desarrollados mostraron valores del coeficiente de determinación ajustado (R² adj) por encima de 0.7 to 0.8, sugiriendo potencial para ser empleados para un pronóstico del estrés hídrico de los combustibles y las condiciones de riesgo de ocurrencia de incendio. Con respecto a los modelos que relacionan los valores mensuales de DR con FDI, la mayoría de ellos explicaron más del 70% de la variabilidad observada en FDI.

Conclusiones

Los resultados sugirieron potencial del índice DR para ser incluido en futuras herramientas operacionales para determinar el riesgo de incendio. En algunos tipos de vegetación y regiones se obtuvieron correlaciones más reducidas entre el índice DR y los valores observados de densidad de incendios, sugiriendo que el papel de otras variables tales como la distancia y el patrón temporal de quemas agrícolas debería ser explorado en futuros estudios.

Background

Understanding the temporal patterns of fire occurrence risk—the chance that a fire might start and spread (Deeming et al. 1972; Hardy 2005)—and their relationships with fuel dryness is key to sound fire management, especially under increased global warming, which may result in increasing drought conditions and potentially increasing fire severity and frequency in some regions (e.g., Wotton et al. 2003; Gillett et al. 2004; Flannigan et al. 2006; Flannigan et al. 2009; Woolford et al. 2013).

Satellite sensors have been utilized in recent years to monitor fuel greenness and associated fire occurrence risk (Chuvieco et al. 2004; Lozano et al. 2007, 2008; Chuvieco et al. 2010; López et al. 2002; Yebra et al. 2008; Yebra et al. 2013). Some systems such as the Fire Potential Index (FPI; Burgan et al. 1998) have integrated satellite information by means of fuel greenness indices based on relative values of the Normalized Difference Vegetation Index (NDVI) for each vegetation type (Burgan and Hartford 1993, 1997; Burgan et al. 1996; Burgan et al. 1998), combined with daily 10 h fuel moisture content calculated from observations of weather stations (Fosberg and Deeming 1971) to map fuel greenness and associated fire risk. Such fire risk systems offer useful information for a sound decision-making in strategic fire management planning (e.g., Preisler et al. 2011; Mavsar et al. 2013; Rodríguez y Silva et al. 2014). These operational fire risk systems have largely been utilized in the United States of America (Burgan et al. 1998; Preisler and Westerling 2007; Preisler et al. 2009; Preisler et al. 2015) or on the European continent (Sebastian-Lopez et al. 2002), including Spain (Huesca et al. 2007; Huesca et al. 2009; Huesca et al. 2014).

In Mexico, Sepúlveda et al. (2001) tested the FPI system (Burgan et al. 1998) in the Baja California region, and Manzo-Delgado et al. (2004) and Manzo-Delgado et al. (2009) demonstrated the potential of the temporal evolution of NDVI-based indices as indicators of fuel drought and associated fire risk in central Mexico.

In addition to these pioneering studies, previous work on fire risk in Mexico has focused on the influence of climate and fuels at regional and local scales. Several studies analyzed climatic effects on fire regimes (e.g., Heyerdahl and Alvarado 2003; Fulé et al. 2005; Drury and Veblen 2008; Skinner et al. 2008; Návar-Cháidez and Lizárraga-Mendiola 2013). Others evaluated the role of weather variables such as precipitation or temperature (e.g., Avila-Flores et al. 2010a; Avila-Flores et al. 2010b; Carrillo García et al. 2012; Antonio and Ellis 2015), or weather-based indices (e.g., Villers-Ruiz et al. 2012) on fire occurrence risk, mainly at local or regional scales. Some local or regional studies also considered the influence of fuels on fire occurrence risk (e.g., Flores Garnica et al. 1990; Muñoz Robles et al. 2005; Wong González and Villers Ruiz 2007; Castañeda Rojas et al. 2015). Whereas previous research offers useful information specific to the scale of their regions of study, there is a need for studies analyzing fire risk and its relationships with fuel dryness spatial and temporal patterns at a national scale that cover the ample diversity of climatic and environmental conditions of Mexico (González-Cabán and Sandberg 1989; Cerano Paredes et al. 2010).

Studies analyzing the relationships of fire occurrence and fuel dryness at a national scale in Mexico are scarce (e.g., Zúñiga-Vásquez et al. 2017a; Pompa-García et al. 2018; Vega-Nieva et al. 2018), limiting our understanding of the effects of changing climatic conditions on fire risk, and preventing development of operational fire risk decision systems. This is in contrast with countries such as USA, Canada, or Brazil that have developed operational fire risk systems based on temporal and spatial quantification of fuel greenness and associated fire risk (e.g., Deeming et al. 1977; Van Wagner 1987; Burgan et al. 1997; Burgan et al. 1998; Preisler et al. 2004; Preisler et al. 2008; Preisler et al. 2011; Preisler et al. 2015; Setzer and Sismanoglu 2012; Riley et al. 2013). This lack of an operational fire risk system led the Forest National Commission (CONAFOR, in Spanish) and the National Research Agency (CONACYT, in Spanish) to fund the national scale project “Development of a Fire Danger System for Mexico.” The main objective of the project is the development of an operational fire-risk mapping system based on satellite and weather information for Mexico (Vega-Nieva et al. 2019a; Vega-Nieva et al. 2019b). Vega-Nieva et al. (2018) focused on analyzing relationships between a satellite-based fuel greenness index, FPI (Burgan et al. 1998), and MODIS active fire registers in the period 2011 to 2015. The models developed in that study were limited to observed fuel greenness values, but further work is required for fire risk forecasting. The present study focused on understanding temporal patterns of active fire density by vegetation type and region in Mexico for the period 2003–2014, explored its relationships with a MODIS-based fuel greenness index, and developed forecast models for the prediction of the fuel greenness index for the following month based on previously observed values. The specific objectives of the study were:

• 1) To quantify monthly temporal trends of a MODIS satellite-based fuel greenness index, dead ratio (DR), and the temporal trends of active fire density (FD) by vegetation type and region in Mexico.

• 2) To test regression models, including temporal autocorrelation of residuals, for prediction of monthly FD by vegetation type and region from monthly DR values in Mexico.

• 3) To develop autoregressive integrated moving average (ARIMA) models that can be utilized for forecasting DR based on the last observed values of this index.

Methods

Study area

Because of the national scope of the work, the area of study was the Mexican Republic. Figure 1 shows the vegetation types present in the country according to the National Institute of Geography and Statistics (INEGI, in Spanish) land use map (INEGI Land Use Map Series V, 1:25000 http://www.inegi.org.mx/geo/contenidos/recnat/usosuelo/).

Fig. 1

Map of vegetation types and regions in Mexico that were considered in the analysis, for the period 2003 to 2014

Based on previous analysis of active fire temporal trends in the country (Vega-Nieva et al. 2018), we reclassified vegetation types into the following seven categories: Agriculture (AG), Arborous Secondary Vegetation (ARBSV), Deciduous Tropical Forest (DTROPF), Pastureland (PAS), Perennial Tropical Forest (PTROPF), Shrubby Secondary Vegetation (SHSV), and Temperate Forest (TFOR).

Given the well-documented variations in fire regimes seasonality in the country (e.g., Rodríguez-Trejo et al. 2008; Yocom et al. 2010; Yocom and Fulé 2012; Yocom et al. 2014; Jardel et al. 2014), four geographical regions—Northwest (NW), Northeast (NE), Center (C), and South (S)—were established (Fig. 1). The region definitions were based on the potential fire regimes zoning for Mexico (Jardel et al. 2014), as well as vegetation types and climatic zones (Holdridge 1996), together with a visual observation of the temporal and spatial patterns of clustering in fire hotspots for the period of study. The seven vegetation types defined above were present in all four regions, resulting in a total of 28 combinations of vegetation types and regions to be modeled.

MODIS monthly active fire and NDVI data

Considering the availability of MODIS active fire information for Mexico, we selected the period of 2003 to 2014 for our study. We compiled monthly composites of MODIS active fire detections for the 12 years of the study period from CONABIO (http://incendios1.conabio.gob.mx/ ). Active fires were obtained based on the Contextual Fire Detection Algorithm for MODIS (Giglio et al. 2003). Active fires data were filtered by CONABIO following the protocol described by Cruz-López (2007). This data filtering included the consideration of specific thresholds for brightness temperature (Cruz-López 2007), and the use of additional masks such as NDVI, vegetation, or stable light masks to minimize false detections, as described by Cruz-López (2007) and Vega-Nieva et al. (2018). Monthly NDVI composite images with a spatial resolution of 1 km × 1 km (MODIS product MOD13A3) from the study period were downloaded from http://modis.gsfc.nasa.gov/data/dataprod/mod13.php

Dead ratio calculation

Following Burgan et al. (1998), the following DR index was calculated:

$$ DR=100- LR, $$

(1)

where DR = dead ratio and LR = live ratio.

Dead ratio is an empirical index representing the fraction of fuel that is not alive, reaching 100 in a fuel that is completely cured with no live biomass, and with lower values representing fuels with a higher fraction of live biomass. Its calculation is based on relative greenness values and maximum live ratios following Burgan et al. (1998) equations 2 to 4:

$$ LR=\frac{RG\times {LR}_{\mathrm{max}}}{100}, $$

(2)

where RG is relative greenness, and calculated as:

$$ RG=\frac{NDVI_0-{NDVI}_{\mathrm{min}}}{NDVI_{\mathrm{max}}-{NDVI}_{\mathrm{min}}}\times 100, $$

(3)

where NDVI₀ is the observed NDVI for each pixel at every month, and NDVI_min and NDVI_max are the minimum and maximum NDVI values for each pixel, respectively.

LR_max is the maximum live ratio, calculated following equation 4 based on Burgan et al. (1998):

$$ {LR}_{\mathrm{max}}=\frac{35+40\left({NDVI}_{\mathrm{max}}-125\right)}{255-125}. $$

(4)

The values 125 and 255 are the absolute minimum and maximum NDVI values observed for Mexico. Maximum and minimum NDVI values for each pixel and absolute minimum and maximum NDVI values were calculated by considering all of the NDVI monthly images for the period 2003 to 2014. DR values were calculated for each monthly NDVI image in the period of study, and mean DR value for each monthly image was calculated using Cell Statistics in ArcGIS 10.3 (ESRI 2011).

Fire Density Index

For each of the 28 vegetation types and regions considered, monthly Fire Density (FD) was calculated by dividing the number of fires in the area by the surface (km²) of the vegetation and region considered. Monthly FD values for each vegetation type and region were scaled to a Fire Density Index (FDI) as follows:

$$ FDI=\frac{Number\kern0.34em of\kern0.34em active\kern0.34em fires}{Surface\kern0.2em \left({km}^2\right)\times 5000}. $$

(5)

The FDI index is defined so that an FD of 0.01 active fires km⁻² (e.g., 1 fire per 100 km²) is equivalent to an FDI value of 50. Accordingly, an FD of 2 active fires per 100 km² is equivalent to an FDI value of 100, which might be considered an indicator of a high active fire density.

Modeling monthly FDI from DR

Except for Agriculture, fire season concentrated on the period December to June for all vegetation types considered. Agriculture showed an earlier start of fire season, caused by agricultural burnings, which usually take place very early in the dry season (Martínez-Torres et al. 2016). Consequently, all land uses, except for agriculture, were modeled for the period December to June, and Agriculture was modeled for the whole year.

Model formulation and selection

We fitted linear and non-linear (power) models for prediction of FDI from DR for each vegetation type and region, following:

$$ FDI=a- bDR, $$

(6)

and

$$ FDI=a{DR}^{\mathrm{b}}, $$

(7)

where a and b are model coefficients, FDI is Fire Density Index (Equation 5), and DR is dead ratio (Equation 1).

To further assess whether the models were different among different months or groups of months, the nonlinear extra sum of squares method was used (Bates and Watts 1988: 103–104). This method requires the fitting of full and reduced models and has frequently been applied to assess whether separate models are necessary for different species or different geographic regions (e.g., Huang et al. 2000; Zhang et al. 2002; Corral-Rivas et al. 2004; Castedo et al. 2005; Corral-Rivas et al. 2007). In this paper, the reduced model corresponds to the same set of global parameters for all months, as shown in Equations 6 and 7. The full models correspond to different sets of global parameters for different months or group of months, which are obtained by expanding each global parameter by including an associated parameter and a dummy variable to differentiate the months or groups of months. For example, the expansion of a global parameter b of a linear model (Equation 6 for the reduced model) for every month can be written as:

$$ {b}_1{d}_1+{b}_2{d}_2+\dots +{b}_{12}{d}_{12,} $$

(8)

where b₁ through b₁₂ are the associated parameters of the full model, and d₁ through d₁₂ are the dummy categorical variables for considering the months, which are defined as follows: d₁ = 1 if month = January, otherwise d₁ = 0; …; d₁₂= 1 if month = December, otherwise d₁₂ = 0.

We considered all possible combinations of months for analysis, using either linear or non-linear (power) formulations. For example, the expansion of a global parameter b of a linear model with a separated coefficient for the group of months 1 to 5 (January to May) and 6 to 12 (June to December) can be written as:

$$ {b}_{1-5}{d}_{1-5}+{b}_{6-12}{d}_{6-12}, $$

(9)

where b_1–5 and b_6–12 are the associated parameters of the full model for the corresponding group of months 1 to 5 and 6 to 12, respectively, and d_1–5 and d_6–12 are the dummy categorical variables for identifying each corresponding group of months, defined as follows: d_1–5 = 1 if month = January to May, otherwise d_1–5 = 0; d_6–12 = 1 if month = June to December, otherwise d_6–12 = 0.

The appropriate test statistic for comparing full and reduced models used the following expression:

$$ F=\frac{\frac{SSE_{\mathrm{R}}-{SSE}_{\mathrm{F}}}{df_{\mathrm{R}}-{df}_{\mathrm{F}}}}{\frac{SSE_{\mathrm{F}}}{df_{\mathrm{F}}}} $$

(10)

where SSE_R is the error sum of squares of the reduced model, SSE_F is the error sum of squares of the full model, and df_R and df_F are the degrees of freedom of the full and reduced models, respectively. The non-linear extra sum of squares follows an F-distribution.

If the above F-test results revealed that there was no difference among the models for different months, a composite model fitted on the combined data was all that was needed. If the F-test results showed that there were differences among models (P < 0.05), further tests were needed to evaluate whether the differences were caused by as few as two months, or as many as all of the months. For instance, full models for all combinations of grouped months (1 to 12 grouped months for Agriculture and 1 to 6 grouped months for the remaining vegetation types) were compared with their corresponding reduced model using the F-test. Only when an insignificant F-value (P > 0.05) was obtained could the models for these two group of months be considered similar and combined.

We selected candidate models for which the grouped coefficients were significantly different as detected by the F-test. These candidate models were further evaluated by the following goodness of fit statistics: adjusted coefficient of determination (R²), root mean squared error (RMSE), and Akaike’s Information Criterion (AIC), calculated as follows:

$$ {R}_{\mathrm{adj}}^2=1-\frac{\left(n-1\right)\Sigma {\left({y}_{\mathrm{i}}-\hat{y_{\mathrm{i}}}\right)}^2}{\left(n-p\right)\Sigma {\left({y}_{\mathrm{i}}-\overline{y}\right)}^2}, $$

(11)

$$ RMSE=\sqrt{\frac{\Sigma {\left({y}_{\mathrm{i}}-\hat{y_{\mathrm{i}}}\right)}^2}{n-p}}, $$

(12)

and

$$ AIC=n\times In{\upsigma}^2+2\times l-n\times In{\upsigma}^2+2\times l $$

(13)

where: y_i and ŷ_i are the observed and estimated values of the dependent variable, respectively; ȳ is the average value of the dependent variable; n is the total number of observations used to fit the model; p is the number of model parameters; l = p + 1, and ${\hat{\upsigma}}^2$ is the estimator of the error variance of the model, obtained as follows:

$$ {\upsigma}^2=\frac{\sum_{\mathrm{i}=1}^{\mathrm{n}}{\left({y}_i-\hat{y_{\mathrm{i}}}\right)}^2}{n}. $$

(14)

Autocorrelation

Because the structure of the data includes consecutive observations of FDI, autocorrelation within the residuals of each vegetation type and region might be expected, which would violate the assumption of independent error terms. In order to account for this temporal autocorrelation, the adjustment was performed in two stages. First we adjusted models without accounting for the correlation between consecutive observations. We then examined presence of autocorrelation based on the visual inspection of plots of residuals against residuals from previous observations for each combination of vegetation type and region. Based on the observed autocorrelation at time lags of order k, we included a modified k-order autoregressive error structure, which accounted for the time lag between consecutive observations in the models for each combination of vegetation type and region. Error terms were consequently expanded as follows:

$$ {e}_{\mathrm{i}}={\sum}_{\mathrm{k}=1}^{\mathrm{x}}{I}_{\mathrm{k}}{\uprho}_{\mathrm{k}}^{{\mathrm{h}}_{\mathrm{i}}-{\mathrm{h}}_{\mathrm{i}-\mathrm{k}}}{e}_{\mathrm{i}-\mathrm{k}}+{\upvarepsilon}_{\mathrm{i}}, $$

(15)

where I_k = 1 for i > k and I_k = 0 for i = k, ρ_k is the k-order continuous autoregressive parameter to be estimated, and h_i − h_i-k is the time lag length (months) separating the ith from the ith–k observations, e_i–k is the ordinary residual at previous month i–k (i.e., the difference between the observed and the estimated FDI at month i) for each combination of vegetation type and region.

The order k of the modified error structure was selected based on the plots of residuals against lag residuals. Models were fitted by use of the Model Procedure of SAS/ETS (SAS Institute Inc. 2009).

The error terms were included linearly into the models. For example, for Equation 6, the model with autocorrelated error can be written as:

$$ FDI=a+b\times DR+{e}_{\mathrm{i}}, $$

(16)

where a and b are model coefficients; FDI is Fire Density Index (Equation 5); DR is dead ratio (Equation 1); and e_i is the error term for the month i, expanded following Equation 15.

Autoregressive integrated moving average (ARIMA) modeling of DR

We tested the fitting of seasonal AutoRegressive (AR) Integrated (I) Moving Average (MA) models (ARIMA) for forecasting the DR time series of each vegetation type and region. Seasonal ARIMAs are commonly utilized in the remote sensing domain due to the highly significant seasonal component usually associated with remote sensing time series (e.g., Fernández-Manso et al. 2011; Huesca et al. 2014).

The seasonal ARIMA model incorporates both non-seasonal and seasonal factors in a multiplicative model. One shorthand notation for the model is:

$$ ARIMA\left( ar, dif, ma\right)\times \left( sar, sdif, sma\right)S, $$

(17)

where ar = non-seasonal AR lag order, dif = non-seasonal differencing, ma = non-seasonal MA lag order, sar = seasonal AR lag order, sdif = seasonal differencing, sma = seasonal MA lag order, and S = time span of repeating seasonal pattern.

Seasonal ARIMA models were fitted using the auto.arima command within the library forecasting in R (Hyndman 2016; R Core Team 2016). The Standard AIC selection criterion (Hamilton 1994) was applied to select the most suitable model. The individual and joint significance of the model parameters was assessed by means of the Student’s t and F tests.

We examined autocorrelation by plotting regular and partial autocorrelation functions (ACF and PACF, respectively) for both the variable DR to be adjusted and the residuals obtained by the ARIMA models. PACF and ACF plots of both DR and model residuals were obtained using the library forecasting in R (Hyndman 2016; R Core Team 2016). We selected models of the lowest AIC for which no autocorrelation in the residuals was present as observed in Partial Autocorrelation Function (PACF) and Autocorrelation Function (ACF) plots.

Results

Observed temporal trends of monthly DR and FDI

Figure 2 (captures at high resolution included as annexes) shows the observed temporal trends of the monthly mean DR values together with monthly FDI values observed for each one of the 28 combinations of vegetation types and regions for the 12-year period considered in the study.

Fig. 2

Observed monthly Dead Ratio (DR; upper lines, right axis) and Fire Density Index values (FDI; lower lines, left axis) by vegetation type and region in Mexico for (a) Agriculture and (b) Temperate Forest, in the period 2003 to 2014. NW: Northwest region, NE: Northeast region, C: Center region, and S: South region. High resolution figures for all vegetation types are included as Additional files 1, 2, and 3

Observed DR temporal trends by vegetation types and regions

For vegetation types, the highest DR values were observed in Agriculture and Pasture, and the lower DR values were found for all Tropical Forests, whereas Temperate Forests showed intermediate DR values. For most vegetation types, a regional gradient was observed, with the highest DR values found in the NW region and lowest values in the S, with C and NE regions showing intermediate values. During the first months of the year, all vegetation types and regions showed increasing DR values. The patterns of DR increase in these earlier months varied largely between vegetation types and regions. In general, the increase of DR occurred earlier for the NW region compared to the C and S regions. The rates of DR decrease, likely caused by the occurrence of precipitation, also varied largely by vegetation type and region. The decrease of DR occurred earliest at the C and S regions for most of the vegetation types, often peaking in the months of April and May, and decreasing in the following months. In the NW region, the decrease of DR tended to occur later than the other regions, with NE showing intermediate values.

Observed FDI trends by vegetation types and regions

FDI values varied largely between vegetation types and regions. The highest FDI values were observed for Agriculture, Pasture, and Shrubby Secondary Vegetation in the S region, with values >500 (equivalent to a fire density of >10 fire hotspots per 100 km²).

The C region also showed high FDI values for most of the vegetation types, with maximum FDI values >250 (>5 fire hotspots per 100 km²) for most land uses.

In the NW region, the highest FDI values were found for Temperate Forest, with FDI values >300 (equivalent to >6 fires per 100 km²). In the NE region, observed FDI for Temperate Forest was lower than in the NW region, with observed FDI values <50 (<1 fire hotspot per 100 km²) for most of the years.

Arborous and Shrubby Secondary Vegetation showed high FDI values for all of the regions, with C and S regions reaching values above 100 in all years, and with values above 50 for NW and NE regions.

Regarding Tropical Forests, high FDI values, >100 and even >200, were found in the driest years for Deciduous Tropical Forests (DTROPF) in the four regions. Observed FDI values were generally two or three times higher than corresponding values for Perennial Tropical Forests (PTROPF) in the NW, NE, and S regions (Fig. 2). In the C region, in spite of lower DR conditions in PTROPF compared to DTROPF as expected in a wetter ecosystem, observed FDI values were high in both ecosystem types.

Models relating monthly FDI with DR by vegetation type and region

Based on the F-tests and the evaluation of their goodness of fit statistics, we selected the models shown in Table 1 as the best candidate models for each vegetation type and region. Fitted model coefficients for the selected best models are shown in Table 2. Nonlinear (power) models described the data better than linear models for all vegetation types and regions. Both linear and power-reduced models—those with common parameters for all months—(i.e., Equations 7 and 8) resulted in R² values lower than 0.5 for all land uses, with the exception of Pasture from the NW region and Deciduous Tropical Forests of the S region that could be modeled with a reduced non-linear model with all months grouped (Equation 7; Table 2). For the remaining vegetation types, the probability of finding a critical value greater than the calculated F statistic was lower than 0.01 with full models. There were, therefore, differences among the models for month or group of months.

Table 1 Selected models for prediction of monthly Fire Density Index from Dead Ratio values for Mexico, for the period 2003 to 2014. Veg: vegetation type; AG: Agriculture; All but AG: all vegetation types except Agriculture; Eq. n: equation number. FDI: monthly Fire Density Index; DR: monthly Dead Ratio; a and b are model coefficients; d_i: dummy variable for identifying month or group of months i, with value = 1 for the identified month or group of months i and value = 0 for the remaining months. Numbers in coefficients and in model description correspond to months or groups of months, with 12: December, 1: January, 2: February, 3: March, 4: April, 5: May, 6: June, 7: July, 8: August, 9: September, 10: October, 11: November. Consecutive month groups are indicated with an en dash (–) and non-consecutive month groups indicated with a low line ( _ ). For example, in Eq. 20, termed 12–3, 4_6, 5, there are three groups of months with distinct coefficients: months 12 to 3 together, months 4 and 6 together, and month 5 separately

Table 2 Coefficients and goodness of fit of the best fit equations for the prediction of monthly Fire Density Index from Dead Ratio values for each vegetation type and region in Mexico, for the period 2003 to 2014. Veg_region: vegetation and region; Eq: best fit equation from Table 1; a, b, and rho are global parameters; a1 to a12 are parameters associated to the corresponding months (January to December) or group of months; RMSE: Root Mean Square Error; R²adj: adjusted R²; AIC: Akaike’s Information Criterion; AG: Agriculture; ARBSV: Arborous Secondary Vegetation; DTROPF: Deciduous Tropical Forest, PAS: Pastureland, PTROPF: Perennial Tropical Forest, SHSV: Shrubby Secondary Vegetation; TFOR: Temperate Forest; and NW: Northwest region, NE: Northeast region, C: Central region, S: South region

Equations 7 and 18 through 26, with grouped coefficients for the earlier months (December to February, March, or April) best fitted the data for non-agricultural vegetation types. Most models showed separated coefficients for the peak months April and May, varying by vegetation type and region. In the case of Agriculture (modeled for the 12 months), months of September to March or April could be grouped, suggesting a constant relationship of DR to FDI at the start of the fire season, with latter months (May, June, and, in some regions, also April) having higher fire occurrence as noted by higher coefficient values for those latter months (Table 2: Equations 27 to 29).

Predicted and observed FDI values for each vegetation type and region are shown in Fig. 3. Goodness of fit statistics for the best fit models are shown in Table 2. The selected equations showed good fits for several vegetation types and regions, with 13 of 28 models showing adjusted R² values higher than 0.8, 11 models in the range of 0.7 to 0.8, and four models (those for Temperate Forests and Tropical Forests of the NE region and Pasture of the NW) with adjusted R² values ranging from 0.65 to 0.7.

Fig. 3

Predicted (PRED) and observed (OBS) Fire Density Index for each vegetation type and region in Mexico, for the period 2003 to 2014. AG: Agriculture, TFOR: Temperate Forest, PAS: Pastureland, PTROPF: Perennial Tropical Forest, ARBSV: Arborous Secondary Vegetation, SHSV: Shrubby Secondary Vegetation, DTROPF: Deciduous Tropical Forest, NW: Northwest region, NE: Northeast region, C: Center region, and S: South region. Dots represent monthly FDI values. Lines represent the observed against predicted linear regression equations (R² and equation coefficients of the observed against predicted linear regressions are shown below the name of each vegetation type and region)

Autocorrelation in FDI models

A visual examination of the residuals at time i against the corresponding residuals at previous months i–k, showed that residuals were correlated at time lag k = 1 (i.e., with the previous month). No correlation was observed for the residuals for time lags k greater than 1 month for any vegetation type. Table 2 shows the rho parameter included in the models to account for residuals temporal autocorrelation.

Autoregressive integrated moving average (ARIMA) modeling of DR

The best fit ARIMA models and goodness of fit coefficients are shown in Table 3. The best fit seasonal ARIMA models showed good adjusted R² values, with 14 models showing R² values higher than 0.8, nine models with adjusted R² values of 0.7 to 0.8, and five models (SHSV_S, PAS_S, ARBSV_S, PAS_NE, PTROPF_NE, and PTROPF_S) with adjusted R² values of 0.6 to 0.7. RMSE values ranged from <15 for 13 models, <25 for a total of 24 models, and the remaining four models ranging between 25 and 35 (DTROPF_NE, AG_S, PAS_S, and DTROPF_NW).

Table 3 Coefficients and goodness of fit of the best fit seasonal ARIMA models for prediction of DR for Mexico, for the period 2003 to 2014. Veg_region: vegetation and region; ARIMA: best fit ARIMA models of order (ar, dif, ma) × (sar, sdif, sma)S, where ar is the autoregressive order, dif is the integrated order, ma is the mean average order, sar, sdif, and sma are the seasonal autoregressive, integrated, and mean average order, respectively; and S is time span of repeating seasonal pattern (12 months). ar_i are autoregressive coefficients of the order i, ma_i are moving average coefficients of the order i, sar_i are seasonal autoregressive coefficients of the order i, and sma_i are seasonal moving average coefficients of the order i; intercept: seasonal ARIMA model intercept, R² adj: adjusted R², RMSE: root mean square error, AIC: Standard AIC, AG: Agriculture, ARBSV: Arborous Secondary Vegetation, DTROPF: Deciduous Tropical Forest, PAS: Pastureland, PTROPF: Perennial Tropical Forest, SHSV: Shrubby Secondary Vegetation, TFOR: Temperate Forest, NW: Northwest region, NE: Northeast region, C: Center region, and S: South region

The order of the non-seasonal autoregressive coefficients (ar) ranged from 1 to 6 months, often corresponding to the correlation lags suggested by the Partial Autocorrelation Function (PACF) and Autocorrelation Function (ACF) plots of DR. No integrated coefficients (dif and sdif) were obtained for any model, as expected due to the absence of differencing in the variable to be modeled. Some of the best fit models included moving average (ma) coefficients with a lag of one to two months, and seasonal autoregressive (sar) and moving average (sma) coefficients with lags of one to three previous months. For all models, we plotted ACF and PACF of the variable DR to be adjusted, and also of the residuals after adjustment, to inspect the presence of partial or absolute correlation at any time lag after adjustment. Figure 4 shows an example of ACF and PACF plots of DR and of the best fit ARMA model residual. ACF and PACF plots for all vegetation types are included as annexes. For all vegetation types, correlations at time lags ranging from 1 to 6 months were visible in the PACF and ACF plots of the DR variable to be modeled. This correlation was removed in the residuals of the best fit models, with PACF and ACF values below the level for significant correlation at all time lags (Fig. 4 and annexes).

Fig. 4

(a, b) Example of plots of regular and partial autocorrelation functions (ACF and PACF) of the Dead Ratio (DR) data of Arborous Secondary Vegetation of the NW region (ARBSV_NW), and (c, d) of the residuals of the modeled DR with the best fit ARIMA model, and (e) of observed and predicted DR for ARBSV_NW utilizing the best fit seasonal ARMA model for Mexico, for the period 2003 to 2014. Lines in blue (a to d) mark the limits for significant autocorrelation. Observed data in (e) are shown in black, predicted data in red

Mapping predicted fire occurrence risk

We produced maps of predicted active fire ignition density from DR based on the best fit models for each vegetation type. Figure 5 shows an example of predicted active fire ignition density maps for the fire season months of March to June for two contrasting years: 2011, an extremely dry year with a large fire occurrence, and 2010, a more moderate fire year, representative of average fire occurrence conditions. The year of 2011 represents an extreme of fire occurrence records in Mexico, with an affected total area of 956 405 ha (Zúñiga-Vásquez et al. 2017a), and the largest recorded fire event in the history of the country (Pompa-García et al. 2018).

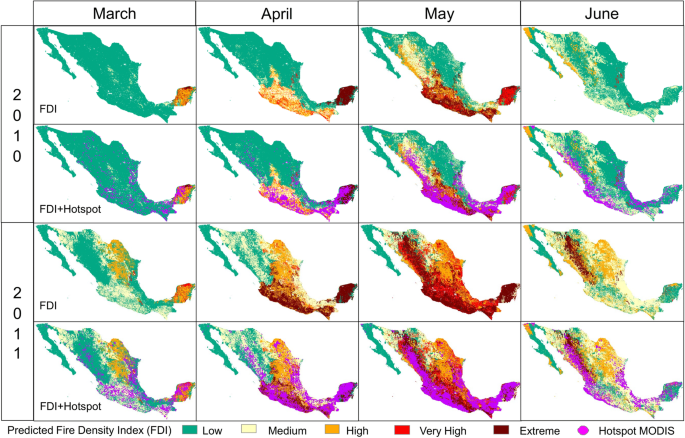

Fig. 5

Maps of predicted Fire Density Index (FDI) for Mexico for the months of March, April, May, and June of 2010 (upper figures) and 2011 (lower figures). Within each year, upper figures show predicted FDI maps and lower figures (FDI + hotspot) show maps of predicted FDI (from red to brown) together with observed MODIS hotspots (in purple) for the corresponding month and year. FDI was scaled as follows: Low: FDI < 25; Medium: FDI = 25 to 50; High: FDI = 50 to 75; Very high: FDI = 75 to 100; and Extreme: FDI > 100

It can be seen that the different fuel drought conditions resulted in very contrasting FDI predictions between the two years. In the year 2011, predicted FDI was high to extreme for the months of April and May for the NW and NE regions, corresponding to a very high hotspot density observed in those two regions and contrasting with lower predicted FDI and observed hotspot density for the same months in the year 2010. Fire risk in the C region was also higher in 2011, with higher predicted and observed fire density in the months of March to May. In the S region, drought and associated FDI were also higher in the year 2011, particularly in the months of May and June, corresponding with a higher observed hotspot density.

Discussion

Observed DR temporal trends by vegetation types and regions

The variations in DR trends between vegetation types suggest a sensitivity of this index to variations in fuel dryness of different ecosystem types. The highest DR values were observed for Pasture and Agriculture, while the lowest DR values were measured in more humid ecosystems such as perennial tropical forests. The relative greenness component of the index was designed to normalize the index value between land types. However, by multiplying relative greenness by a maximum live ratio, which depends on the maximum NDVI (Burgan et al. 1998), the DR index takes into account variability due to type of vegetation. Different types of vegetation have different seasonal trends of drying and wetting, which is reflected in their NDVI temporal trends (e.g., Yebra et al. 2008). For example, Manzo-Delgado et al. (2009) recorded distinct NDVI trends for grasslands, temperate forests, tropical forests, and xerophytic scrublands in central Mexico and included vegetation type in their logistic model for predicting fire occurrence probability in their region of study.

DR values also showed sensitivity to the dryness between regions, with a consistent gradient from the more arid NW to the more humid S, present for most vegetation types. The NW region has a marked rain season starting in June to July, whereas in the tropical S, precipitation is more constant throughout the year. Different timing of precipitation between regions might explain the different dates observed for the DR decrease. This decrease was observed generally one month later in the NW region compared to the C and S regions, probably caused by a later start of the rain season in the NW region, in the months of June and July.

Interestingly, the relationships between DR and FDI trends varied by vegetation type and region. For example, for many land uses such as Agriculture, Pasture or Temperate Forests, the increase of DR (Fig. 2: upper lines) occurred earlier in the NW region compared to a later occurrence of this DR increase in the C or S regions. Looking at the FDI patterns for those land uses (Fig. 2: lower lines), the start of the fire season, as noted by an FDI increase, occurred earlier in C and S regions than in the NW region, suggesting that either a longer accumulated drought is required in the NW region for fires to start, or human patterns of ignition might differ between these regions. Earlier start of fire season might be related to human calendar of agricultural activities in these regions, where the occurrence of forest fires has been documented to be largely related to escaped agricultural burns (e.g., Román-Cuesta et al. 2004; Román-Cuesta and Martínez 2006; Rodríguez-Trejo et al. 2008; Rodríguez-Trejo et al. 2011; Carrillo García et al. 2012).

These differences suggest that the relationships between DR trends and fire occurrence might be specific for each type of vegetation and region.

Observed FDI trends by vegetation types and regions

The high FDI values observed in the S or C region for Agriculture and Pasture were not surprising, because these territories are characterized by frequent slash-and-burn agricultural activities and clearing of forest for expansion of agriculture, which result in frequent fires (e.g., Rodríguez-Trejo and Fulé 2003; Román-Cuesta et al. 2004; Román-Cuesta and Martínez 2006; Rodríguez-Trejo et al. 2008; Rodríguez-Trejo et al. 2011; Carrillo García et al. 2012; Ibarra-Montoya and Huerta-Martínez 2016). These high ignition densities in the C region are consistent with those observed in previous studies of active fire density for the period 2011 to 2015 (Vega-Nieva et al. 2018), as well as with the fire suppression registers spatial analysis from Pompa-García et al. (2018) and Zúñiga-Vásquez et al. (2017b) in Mexico.

In the NW region, the highest FDI values were observed for Temperate Forests, agreeing with previous studies in the region (e.g., Avila-Flores et al. 2010a; Avila-Flores et al. 2010b; Pérez-Verdin et al. 2013a; 2013b; Pérez-Verdin et al. 2014; Pompa-García and Hernández González 2012), that found that most of the fires in Durango State occurred on conifer and hardwood temperate forest.

Lower FDI values were observed in the Temperate Forests of the NE region, which, as discussed above, was probably caused by higher precipitation in this region and an earlier DR decrease caused by an earlier start of the rain season compared to the NW region. However, in years of extreme conditions such as 2011 under La Niña ENSO (El Niño-Southern Oscillation) event, high fire occurrence was found in the forests of the NE region, as noted by an FDI value of >250 (>5 fires per 100 km²) (Fig. 2). This extreme-conditions year corresponds to unprecedented area burned, with the largest fire in Mexico’s history—317 000 ha—occurring in northern Coahuila (CONAFOR 2011).

There is no agreement in the literature about the role of El Niño and La Niña ENSO events in the NE region of Mexico (e.g., Yocom et al. 2010; Yocom and Fulé 2012; Yocom et al. 2014), located at the transition between the areas affected by drought under the influence of El Niño (S) and those affected by La Niña (NW) (e.g., Román-Cuesta et al. 2003; Seager et al. 2007; Seager et al. 2009; Yocom et al. 2010). Meanwhile, the DR trends observed in 2011 for the NE region Temperate Forests, peaking at a value of 80 in April 2011, as opposed to DR values of less than 70 in most of the other years and corresponding with low FDI values of <50 (Fig. 2), seem to suggest that extreme drought conditions were present in the NE forests under 2011 La Niña events. The extreme fire occurrence observed for that region for this period of time seems to suggest that DR might be a potentially useful indicator for detecting extreme drought and associated fire risk conditions in this region caused by ENSO events, although a longer time frame will be required for assessing its performance under future El Niño and La Niña events.

Arborous Secondary Vegetation showed high FDI values in the four regions, suggesting that this might be a fire-prone vegetation type. The likely cause being the high available fuel load that may be expected in this type of ecosystem, constituted by young trees with low crown height combined with high loads of surface fuels. These fuel characteristics result in a potentially high risk of torching and potentially extreme fire behavior, as opposed to a lower risk of torching and lower severity fire regime expected in more mature forest types such as old-growth temperate forests (e.g., Morfín Ríos et al. 2007; Cortés Montaño et al. 2012; Jardel et al. 2014).

Perennial Tropical Forests (PTROPF) showed lower FDI values compared to Deciduous Tropical Forests (DTROPF) in the NW, NE, and S regions. This is expected in this evergreen ecosystem with high moisture conditions for most of the year, compared to drier conditions found in the DTROPF, as noted by lower DR values in these latter ecosystems (Fig. 2). In the C region, both Perennial Tropical Forest and Tropical Forest showed high FDI values, in spite of lower DR values in PTROPF, as expected in this more humid ecosystem. The high FDI values observed in this type of ecosystem with high moisture content are very likely caused by adjacent agricultural burns escaping into forest lands. The majority of the Perennial Tropical Forest area in this region can be found in the state of Chiapas, located in the vicinity of agricultural land (Fig. 1). In this state, reports of agricultural burns and escaped fires from agriculture to both Temperate Forest and Perennial Forest are frequent (e.g., Román-Cuesta et al. 2004; Román-Cuesta and Martínez 2006). Both Deciduous Tropical Forest and Perennial Tropical Forest in Mexico have historically been ecosystems with a low frequency of fires (e.g., Rodríguez-Trejo et al. 2008; Jardel et al. 2014). However, several studies have noted that this historical fire regime has been recently altered because of human activities that have resulted in the introduction of fire on ecosystems historically not adapted to it, with potentially adverse effects on post-fire regeneration of these fire-sensitive ecosystems (e.g., Rodríguez-Trejo 2008, 2015).

Models relating monthly FDI with DR by vegetation type and region

For all of the vegetation types and regions studied, the relationship of FDI with monthly DR was better described with nonlinear than with linear models, suggesting that the relationship of DR with fire occurrence is not linearly proportional (e.g., fire occurrence risk increased very rapidly with increasing DR). Different patterns of FDI and DR relationships were observed for different vegetation types and regions, agreeing with observations that point to a variety of fire regimes resulting from combinations of climatology and fuel types in the country (e.g., Rodríguez-Trejo 2008, 2015; Morfín Ríos et al. 2007; Morfin Rios et al. 2012; Jardel et al. 2014; Vega-Nieva et al. 2018).

The results suggested that significantly different models are required for prediction of FDI from DR for most vegetation types for different groups of months. Thus, derived model coefficients for months and groups of months may offer information about the patterns of timing of fire season and their relationships with DR patterns in different vegetation types and regions.

Models with grouped coefficients for December to February (Tables 1 and 2: Equations 24 through 26) suggest an earlier start of the fire season, with March having a higher coefficient value compared to the three previous months. This was observed for Pasture in all regions but NW, Shrubby Secondary Vegetation in the S and C regions, Arborous Secondary Vegetation in the C and NE regions, and Temperate Forest in the NE region. The timing of agricultural burning in the C, S, and NE regions might be behind this phenomenon, with observed fires in Shrubby Secondary Vegetation and Arborous Secondary Vegetation starting as early as March being possibly related to escaped agricultural burns in these regions.

In the C region, grouped coefficients from December to March were observed for Temperate Forest and seasonally dry Deciduous Tropical Forest (Table 1: Equation 20), suggesting a latter start of fire in the month of April. For Perennial Tropical Forests in the C region, grouped coefficients were obtained from December to April (Table 1: Equation 18), suggesting that, in this region, at least one more month of prolonged dry conditions might be required for fire to start in these more humid tropical forest ecosystems.

For the NW region, grouped coefficients from December to March were obtained for Shrubby Secondary Vegetation (Table 1: Equation 23)—one month later than for the S and C regions—with all remaining vegetation types having grouped coefficients from December to April and separated coefficients for the month of May (Equations 18 and 27), also suggesting a later fire start for these vegetation types compared to other regions, particularly S and C. These results seem to suggest that, in the NW region, most vegetation types might be achieving the required conditions of accumulated drought for fire to occur one or two months later compared to other regions such as C or S, which might be linked to the different timing of precipitation between these regions, or to different patterns in the timing of human-caused ignitions such as agricultural activities.

Most models had good fit, except Tropical Forests models that had a more limited performance. This is likely caused by a lower sensitivity of FDI to DR in this more humid ecosystem, where fires might spread from agricultural lands that are already dry and burned under non-optimum conditions as discussed above. Several studies have pointed to agricultural extension and the proximity to agricultural areas as significant factors explaining fire occurrence in Tropical Forests (e.g., Rodríguez-Trejo and Fulé 2003; Román-Cuesta and Martínez 2006; Román-Cuesta and Martínez 2006; Rodríguez-Trejo et al. 2008; Rodríguez-Trejo et al. 2011). This highlights the need to further understand the role of anthropogenic factors of fire occurrence in these ecosystems where fire is progressively introduced as a consequence of human activities.

Although the model coefficients obtained may account indirectly for some of the variations in ignitions pattern caused by human activity patterns, future spatial analysis should focus on the explicit consideration of anthropogenic variables such as the interface of forests and agriculture or the accessibility due to proximity to roads and populations as potentially relevant variables in explaining fire occurrence in Mexico.

Another additional limitation of this first approach of our study is the 12-year dataset utilized as defined by hotspot activity. This could be particularly limiting in a region such as the NE, where more data under extreme DR conditions (e.g., El Niño and La Niña events) might be required for a deeper understanding of drought and fire occurrence relationships.

Autoregressive integrated moving average (ARIMA) modeling of DR

DR could be successfully modeled with acceptable accuracies for most vegetation types by means of ARIMA, similar to works that have utilized these techniques for forecasting fire risk indices in other countries (e.g., Huesca et al. 2014).

It can be seen that Tropical Forests were among the models with a lower performance, perhaps due to the lower degree of variation observed in those more humid ecosystems.

DR underestimation occurred on some extreme drought years for some vegetation types. This could be caused by the limitations inherent to the time length of the dataset, limited by the 12 years of available satellite information, for which only some years of extreme drought conditions are present. Continued monitoring of fire risk under varying drought conditions might improve the ability of these initial models to account for extreme events. In addition, a joint consideration of ENSO indices might help improve forecast of extreme drought events and associated fire risk. The ARIMA models for forecasting NDVI-based relative greenness developed in this manuscript could be coupled with gridded weather forecasts for fire risk forecasting (e.g., Roads et al. 2003; Roads et al. 2005) in future works.

Conclusions

This study represents substantial progress toward developing a system for prediction of fire occurrence risk based on temporal trends in fire density and drought. Temporal trends were measured by a satellite fuel dryness index, dead ratio (DR), in different types of vegetation and regions in Mexico, at a national scale, with a monthly temporal resolution, for the period 2003 to 2014. DR trends varied by vegetation type and region, with drier fuel conditions measured in the most arid type of fuels and regions. Furthermore, significant relationships were found relating monthly fire density and DR for the analyzed vegetation types and regions in the period of study. In addition, we obtained preliminary seasonal autoregressive integrated moving average models for prediction of monthly DR values that might be incorporated into future fire risk forecast operational tools. While these initial results suggest that there is potential for the indices utilized to capture the variations in temporal trends of fuel dryness and their impact on fire occurrence in the country, a longer time period of monitoring will be required for improving our understanding of long-term climatic effects, such as El Niño and La Niña impact, on drought and associated fire risk in the country.

Future work, in the frame of the CONAFOR-CONACYT project for the development of an operational fire risk system in Mexico, will explore temporal trends of fire occurrence with satellite- and weather-based indices of fuel greenness at finer temporal resolutions. Our future studies within this project will also focus on the consideration of spatial patterns of fire density as related to weather, fuels, and human factors (e.g., distance to roads, population, agriculture) for further understanding of the spatial-temporal patterns of fire in Mexico.
